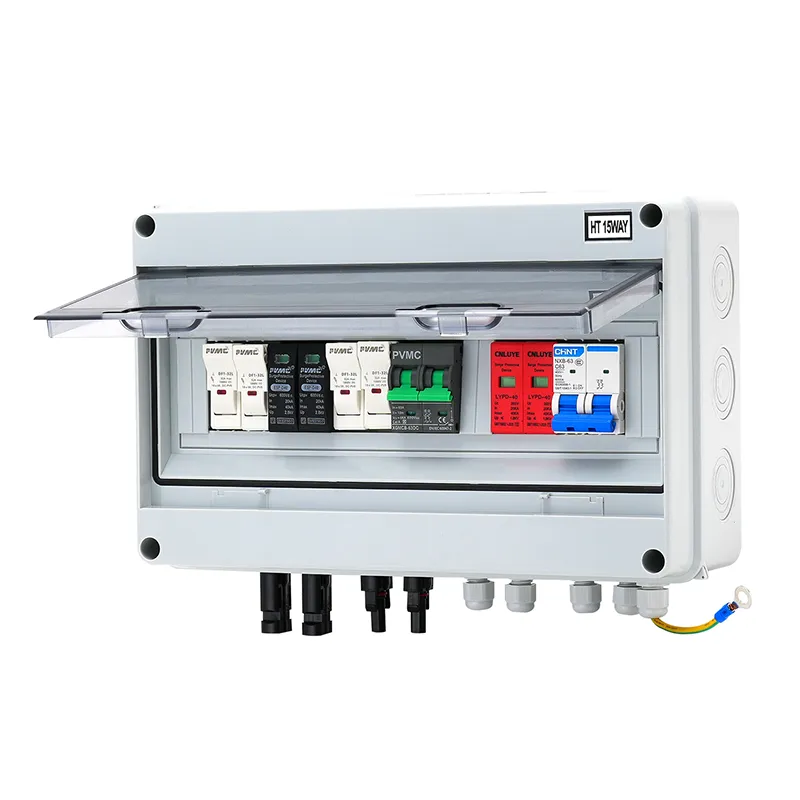

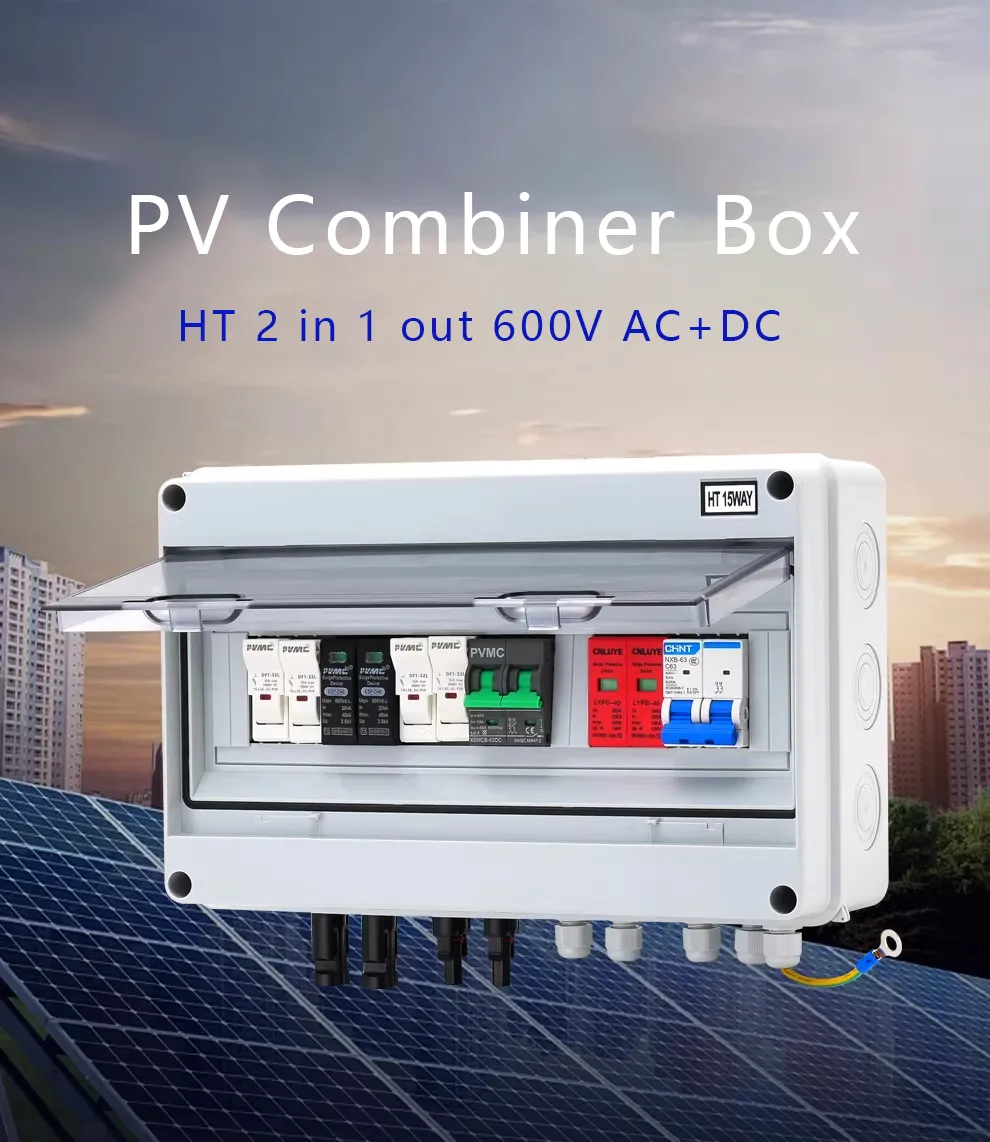

2 String 600V AC+DC Solar Combiner Box IP65 with Surge Protection & Breakers
Overview
This AC+DC Solar Combiner Box is a fully integrated protection solution for photovoltaic systems that require both DC string aggregation and AC grid interconnection. It combines 2 DC inputs (600V) and 1 AC output (400V) in a single IP65‑rated outdoor enclosure, significantly reducing installation space and complexity.

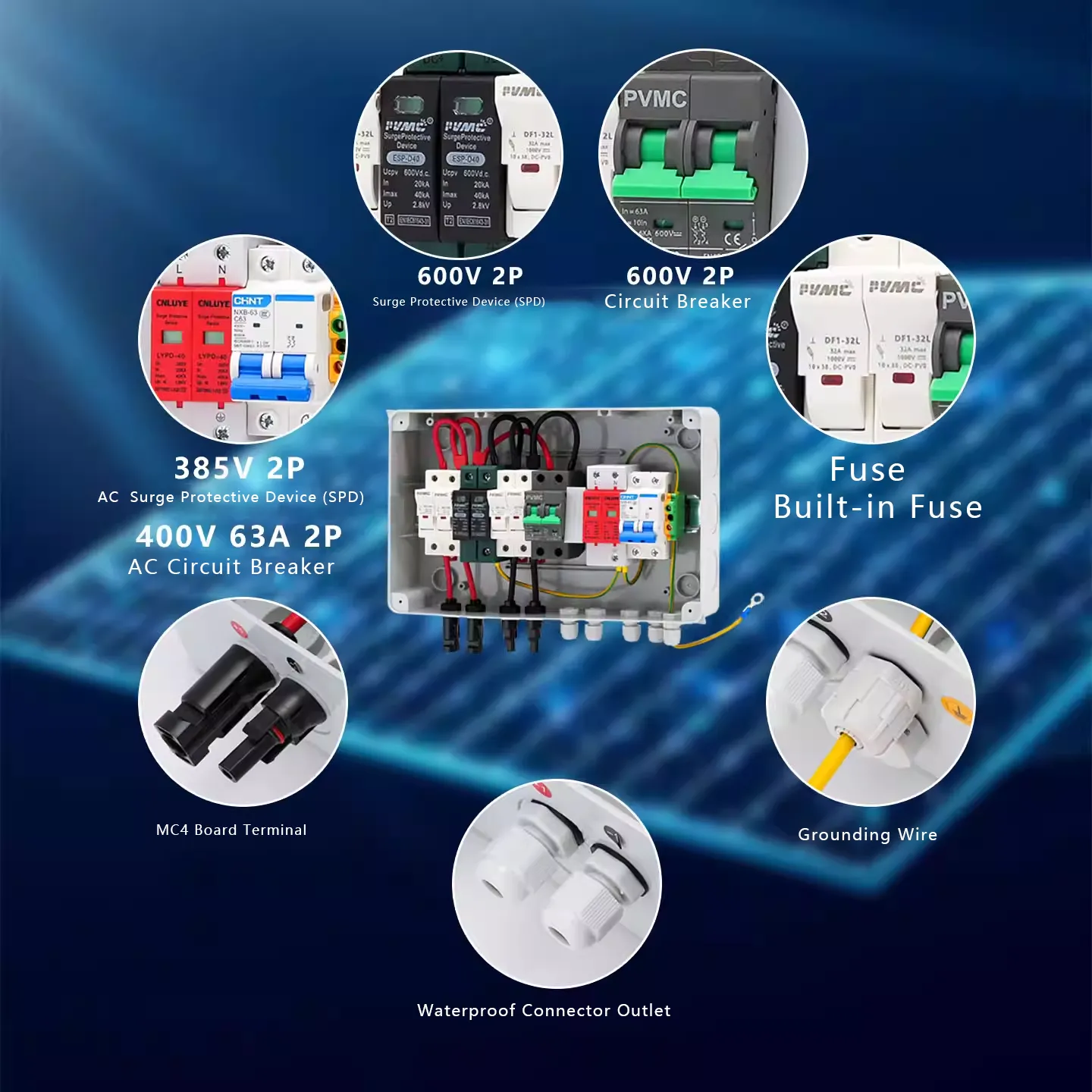

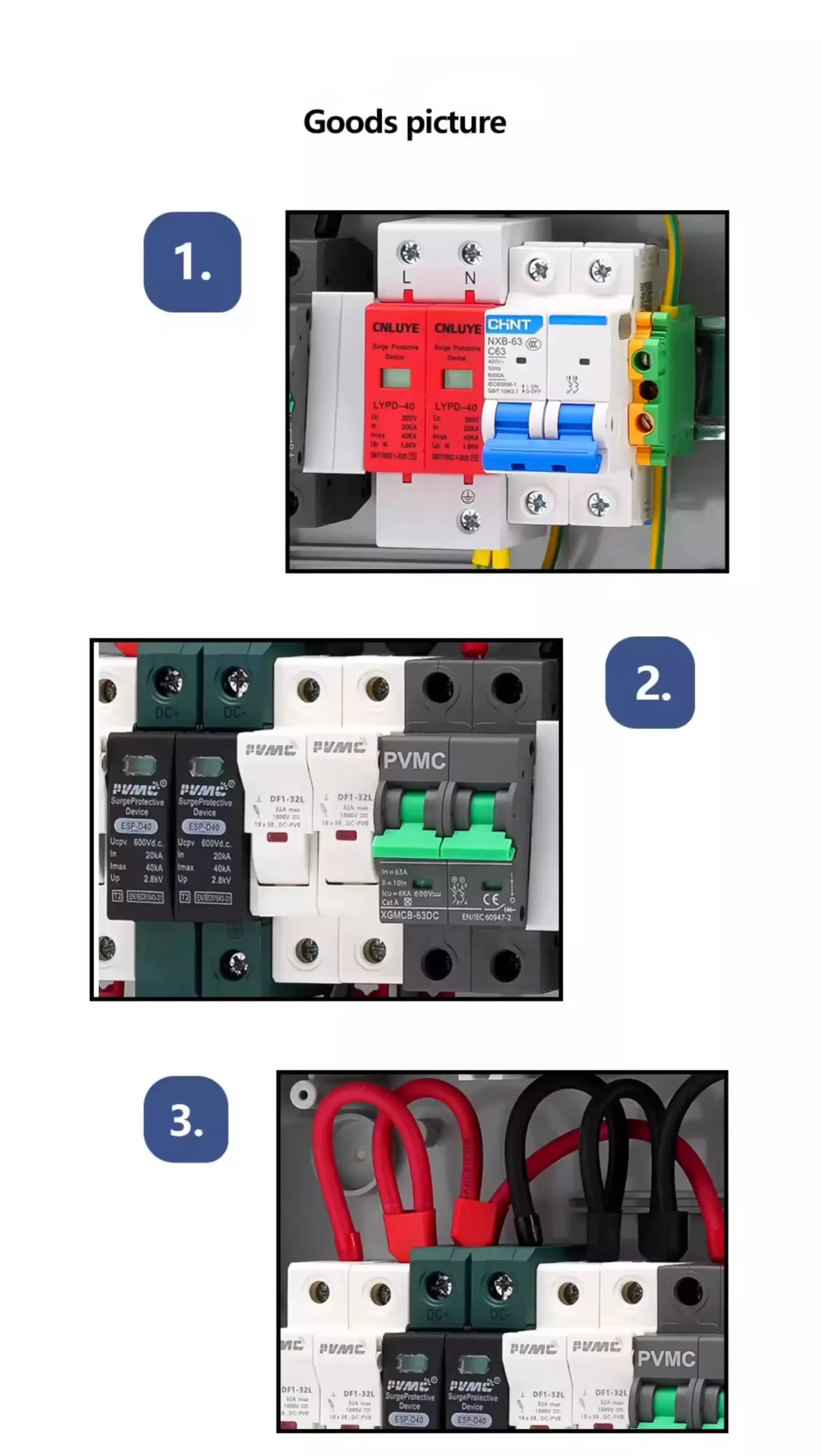

The DC side is equipped with a 2P 600V surge protection device (SPD), a 2P 600V/63A DC circuit breaker, and two DC fuses (one per input). The AC side includes a 2P 385V AC SPD and a 2P 400V/63A AC circuit breaker. All components are CE certified, ensuring compliance with European safety standards.
Key Features

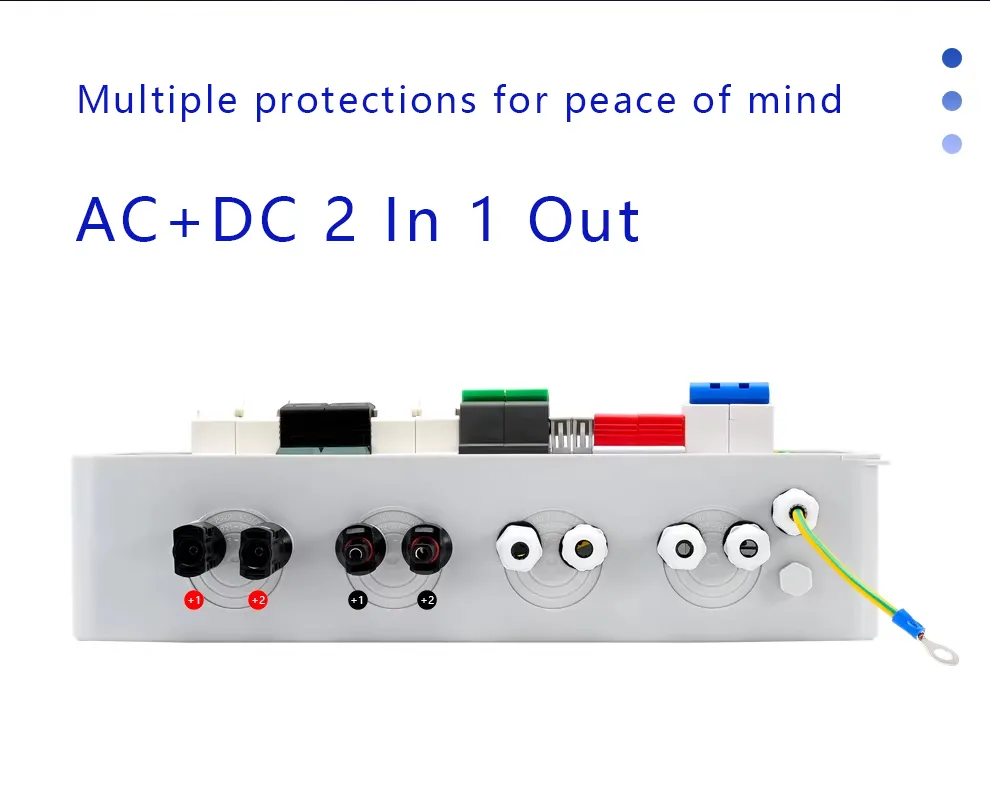

2 DC Strings Input / 1 DC Output – 600V DC, with individual fuses for each string
1 AC Circuit – 400V AC, with dedicated surge protection and breaker
IP65 Weatherproof Enclosure – Suitable for direct outdoor installation
DC Side Protection

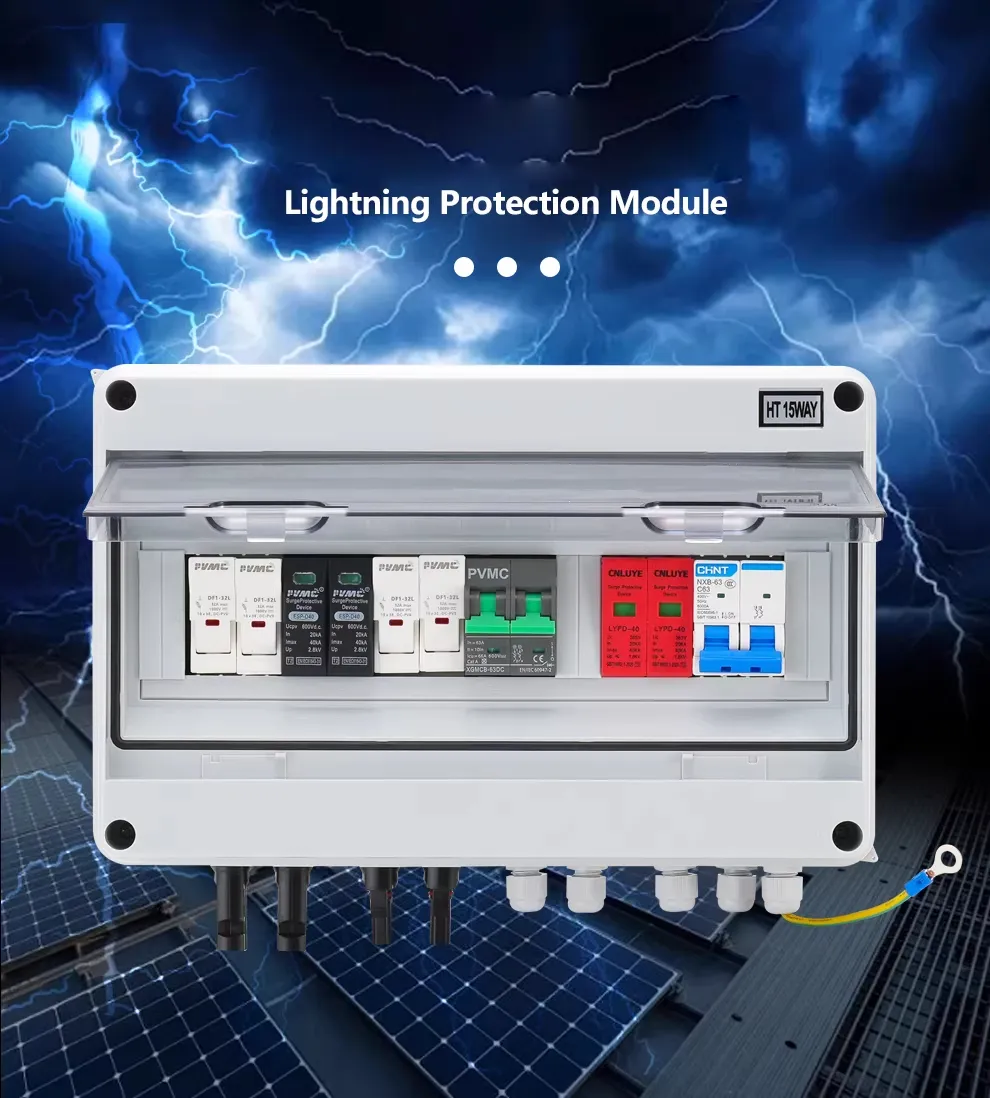

2P 600V DC SPD (lightning and surge protection)
2P 600V/63A DC circuit breaker
2 × 600V DC fuses (string overcurrent protection)
AC Side Protection
2P 385V AC SPD
2P 400V/63A AC circuit breaker
CE Certified – Meets European safety and performance requirements
Factory Direct – Competitive pricing and full technical support
Applications
Residential and commercial grid‑tied solar systems
Hybrid solar + storage installations where AC and DC protection are co‑located
Space‑constrained projects requiring a single enclosure for both DC and AC protection
Retrofit upgrades for existing PV systems
Why Choose CYF Energy？
Integrated Design – Reduces installation time, material costs, and enclosure footprint.
Factory Direct – We manufacture and supply high‑quality PV components.
Customizable – Different voltages, currents, and protection configurations available.
Quality Assurance – CE certified components tested for reliability.
Frequently Asked Questions
Q： Can this combiner box be used for both the DC side from panels and the AC side from the inverter to the grid？

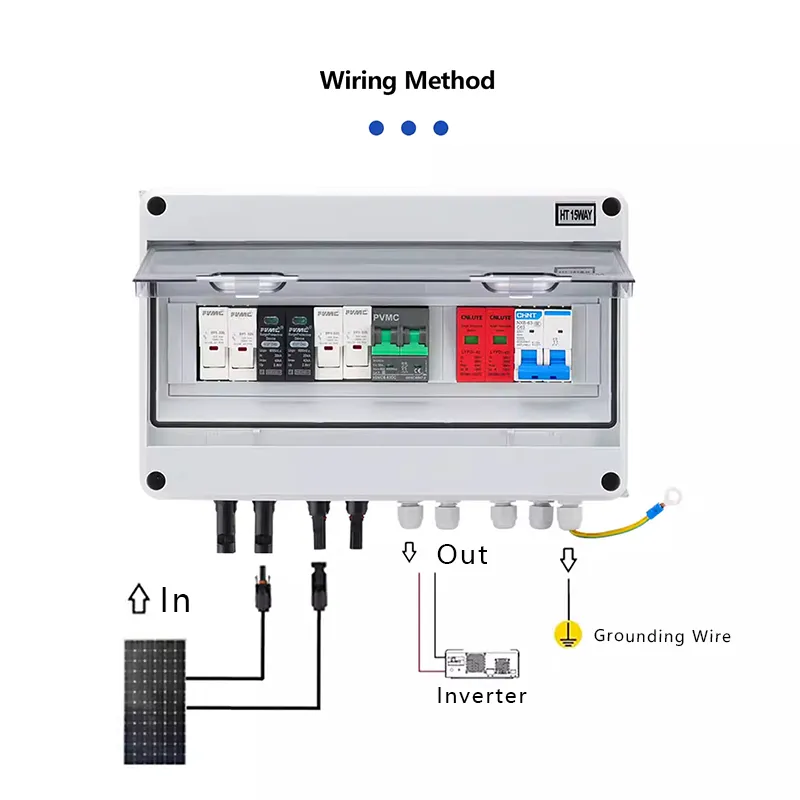

A： Yes. It is designed to accept 2 DC strings from the PV array and provide AC output protection after the inverter.
Q： Is the enclosure suitable for outdoor use？
A： Absolutely. The IP65 rating ensures it is dust‑tight and protected against low‑pressure water jets.
Q： Do you offer models with more DC strings or different AC voltages？
A： Yes, we can customize the number of DC inputs and AC voltage ratings. Please contact us with your requirements.
Q： What is the advantage of a combined AC+DC combiner box？

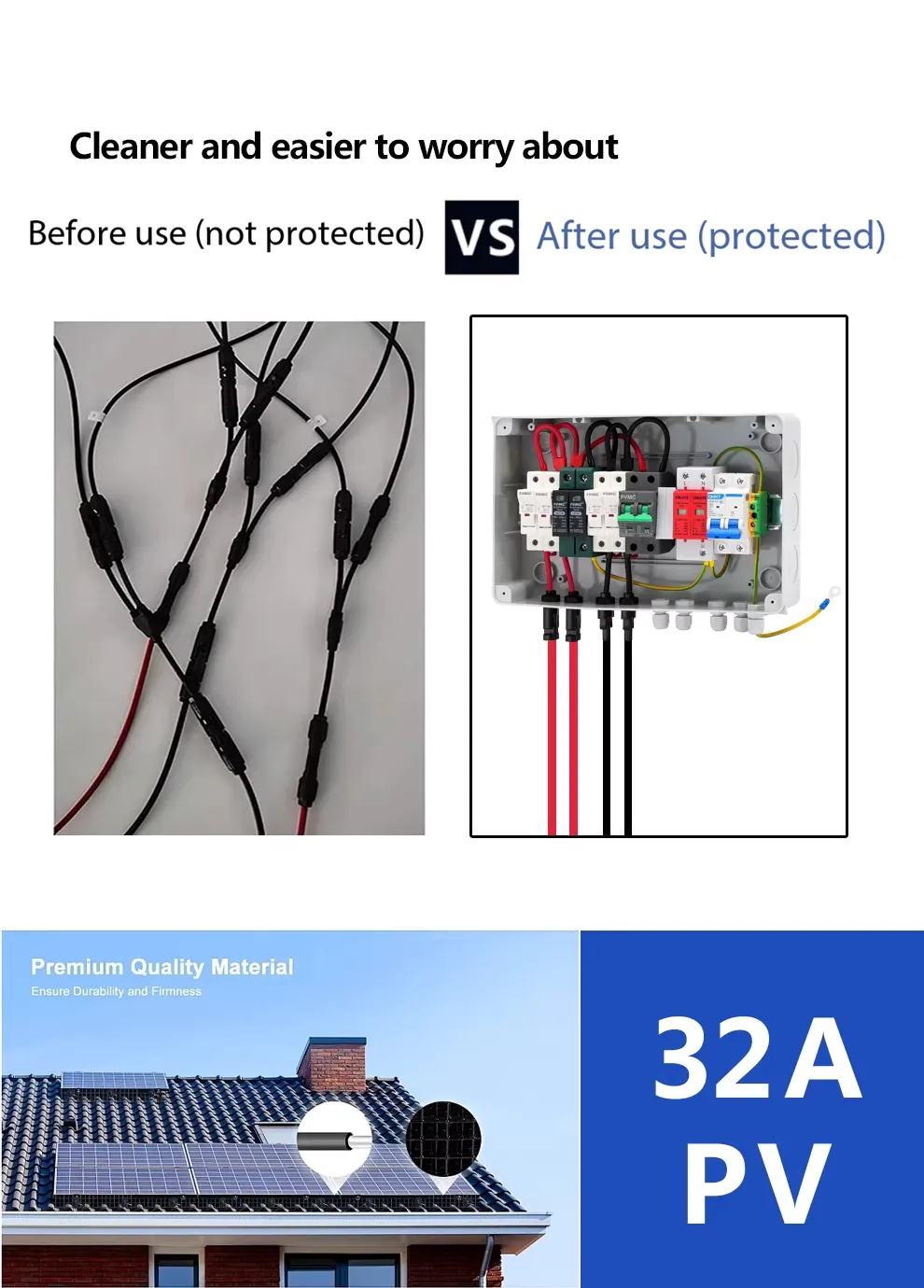

A： It simplifies the balance of system components, reduces the number of separate boxes, and centralizes protection, making maintenance easier and saving wall or pole space.
Get a Quote Today
Need an integrated AC+DC combiner box for your solar project？ Contact us now for detailed specifications and a custom quote.
