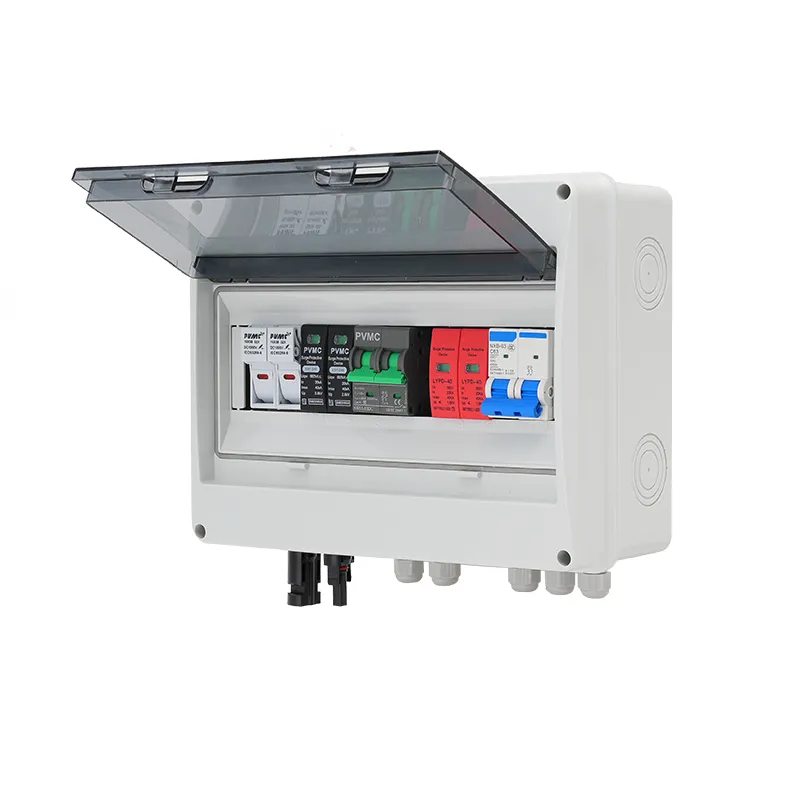

HT Series DC+AC Solar Combiner Box 600V IP65 with Surge Protection & Breakers
Overview
The HT Series DC+AC Solar Combiner Box is a unique integrated solution that combines both DC and AC protection in a single IP65‑rated enclosure. Designed for photovoltaic systems that require string aggregation and grid interconnection, it features a complete DC circuit (600V) and a dedicated AC circuit (385V) with separate surge protection and breakers.
This all-in-one design simplifies installation, saves space, and ensures reliable protection for both the DC side (panels to inverter) and the AC side (inverter to grid). Certified with CE, it meets stringent safety standards and is built for outdoor installation in residential, commercial, and industrial solar projects.
Key Features

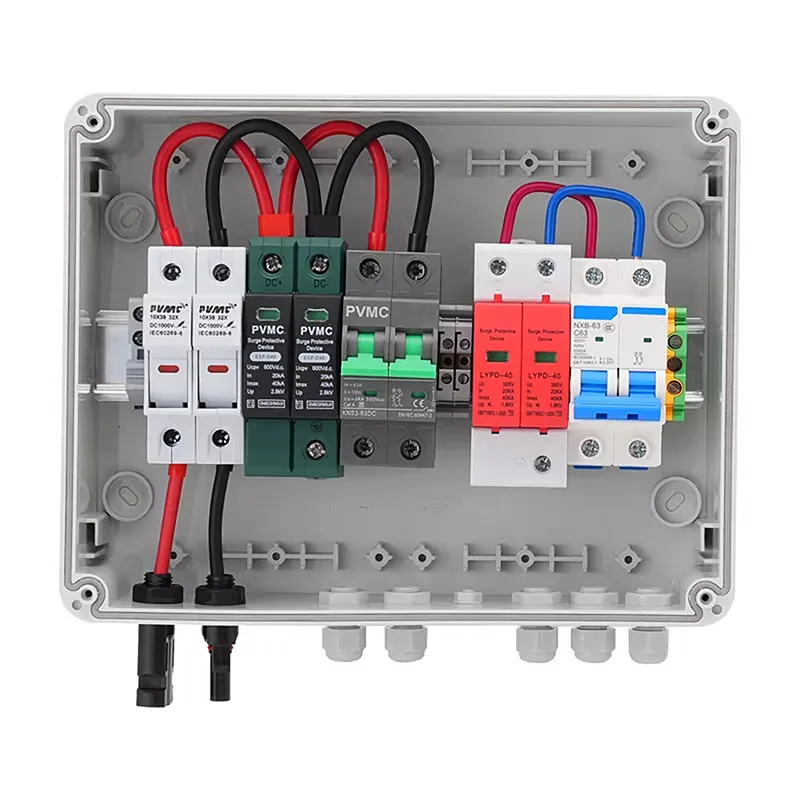

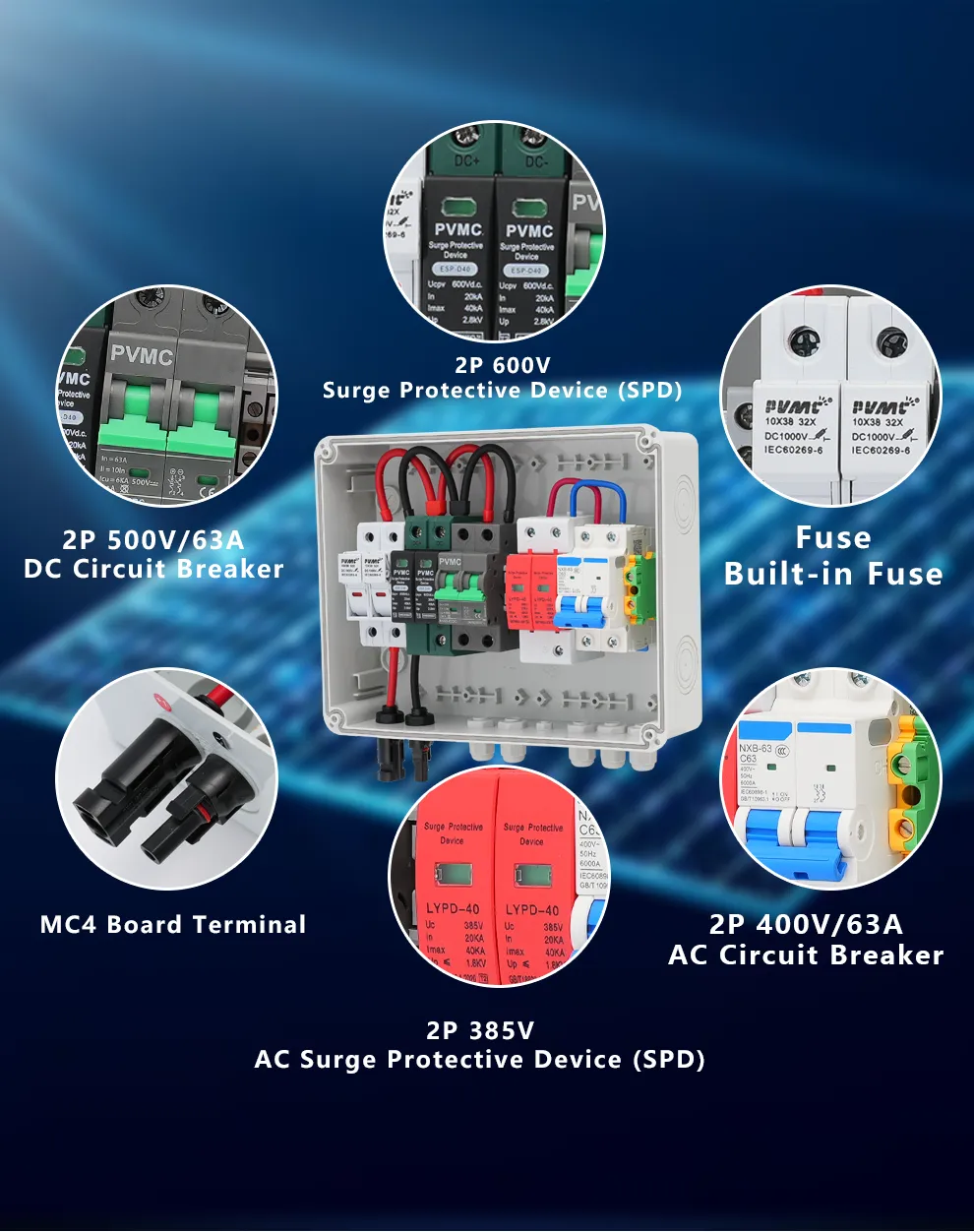

DC Side Protection
1 string input / 1 output (600V DC)
2P 600V DC surge protection device (SPD)
2P 600V DC circuit breaker
2 DC fuses for string overcurrent protection
AC Side Protection
2P 385V AC surge protection device (SPD)
2P 385V AC circuit breaker
Enclosure & Quality

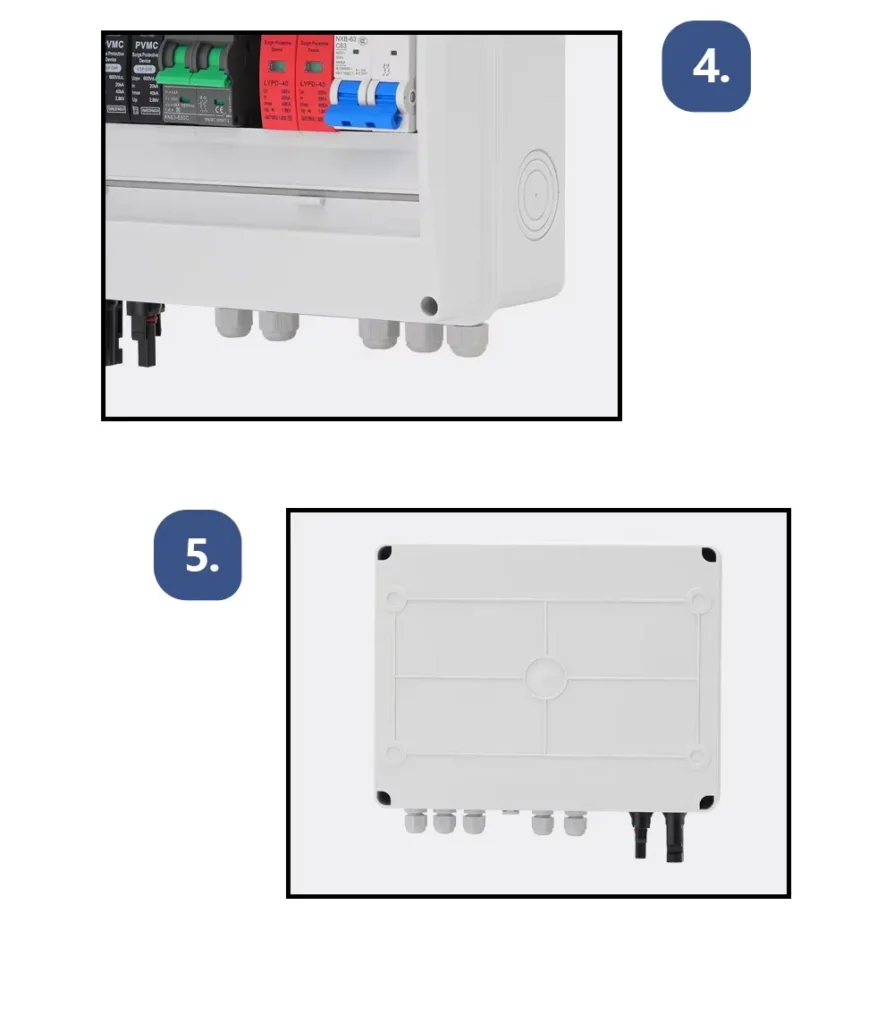

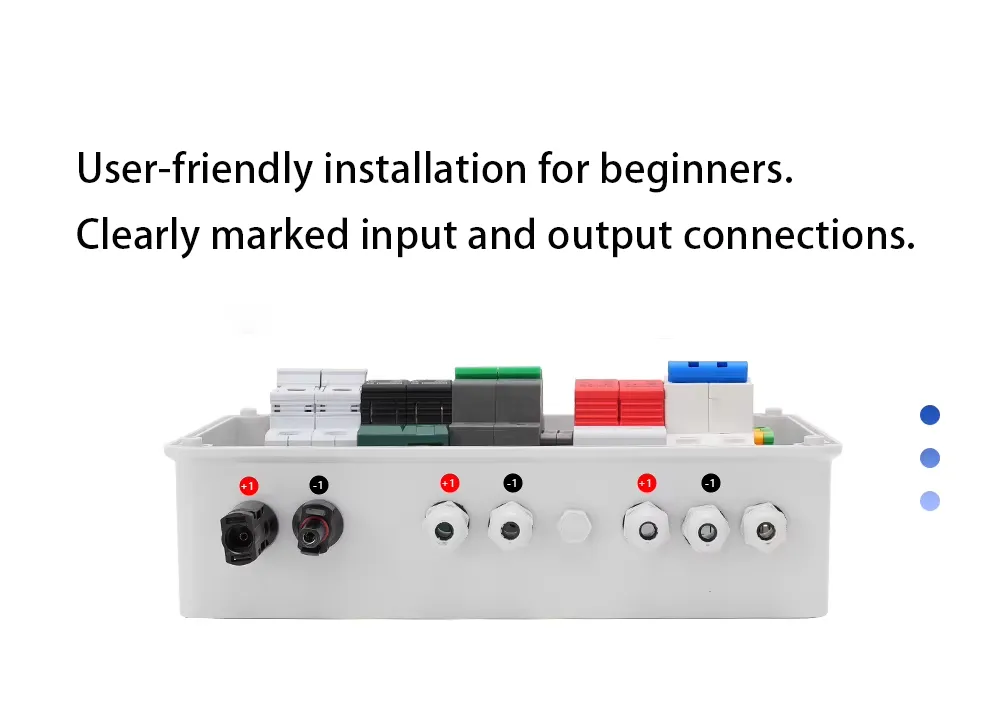

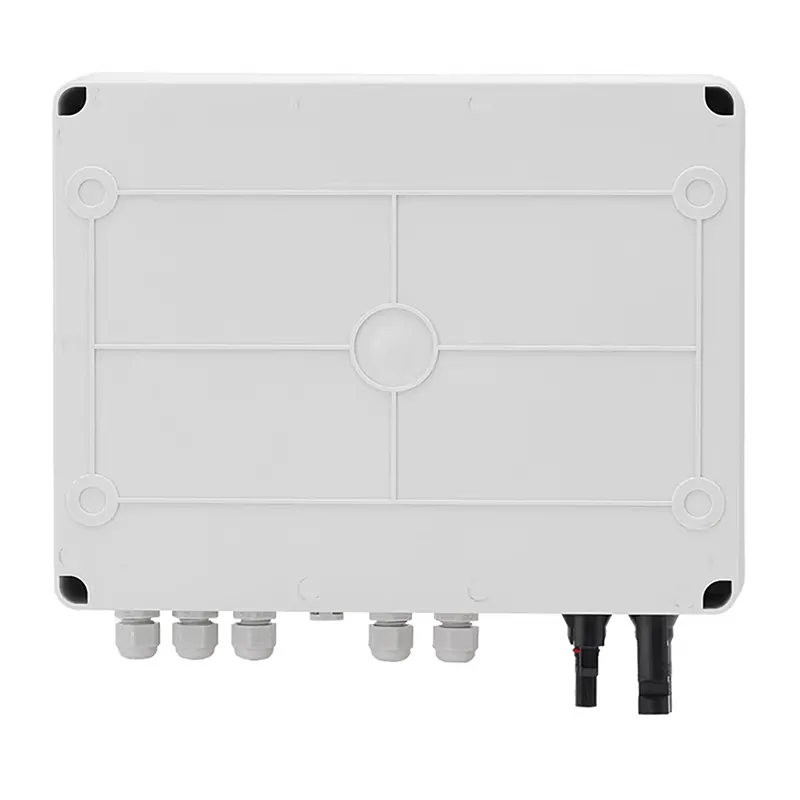

IP65 waterproof enclosure – suitable for outdoor installation
CE certified – meets European safety standards
Factory direct – competitive pricing and reliable support
Applications
Residential rooftop systems with grid interconnection
Small commercial solar projects requiring combined AC/DC protection
Off‑grid and hybrid systems
Installations where space is limited and a single enclosure is preferred
Why Choose CYF Energy？

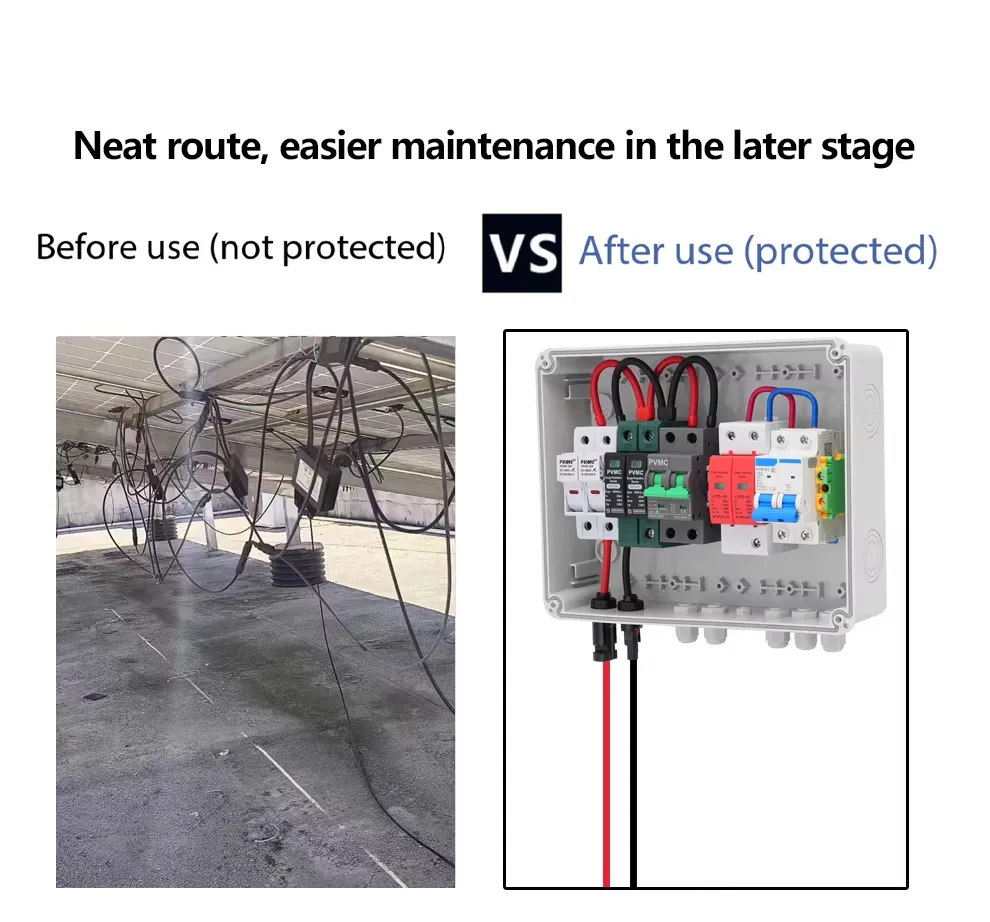

Integrated Design – One enclosure for both DC and AC protection, reducing installation time and material costs.
Factory Direct – Professional manufacturer with years of experience in PV components.
Custom Solutions – Available for different voltages, currents, and protection configurations.
Quality Assurance – CE certified and tested for performance and safety.
Frequently Asked Questions
Q： Can this combiner box be used for both DC and AC circuits from the inverter to the grid？

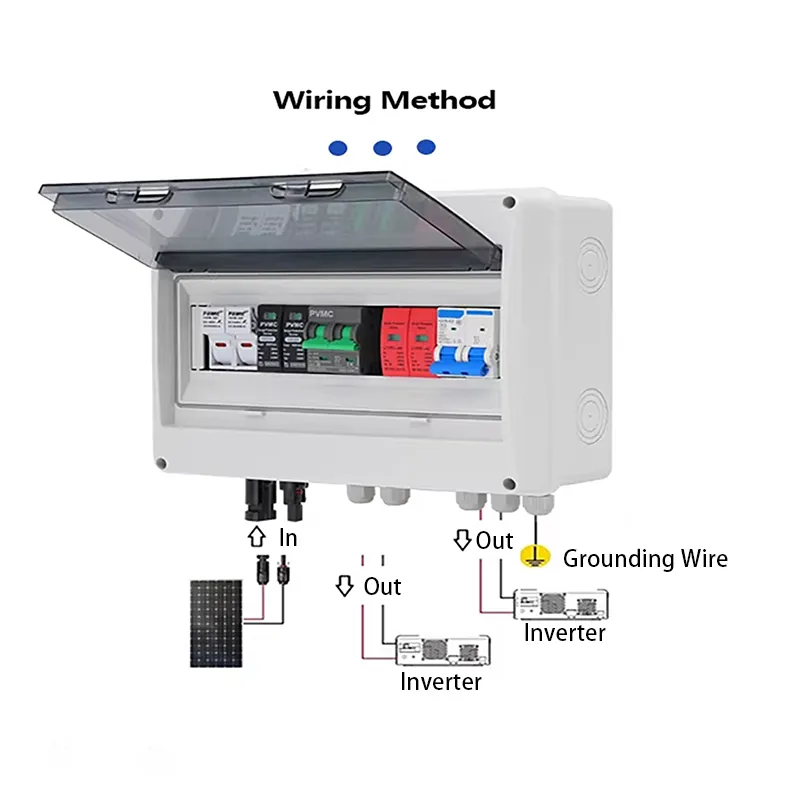

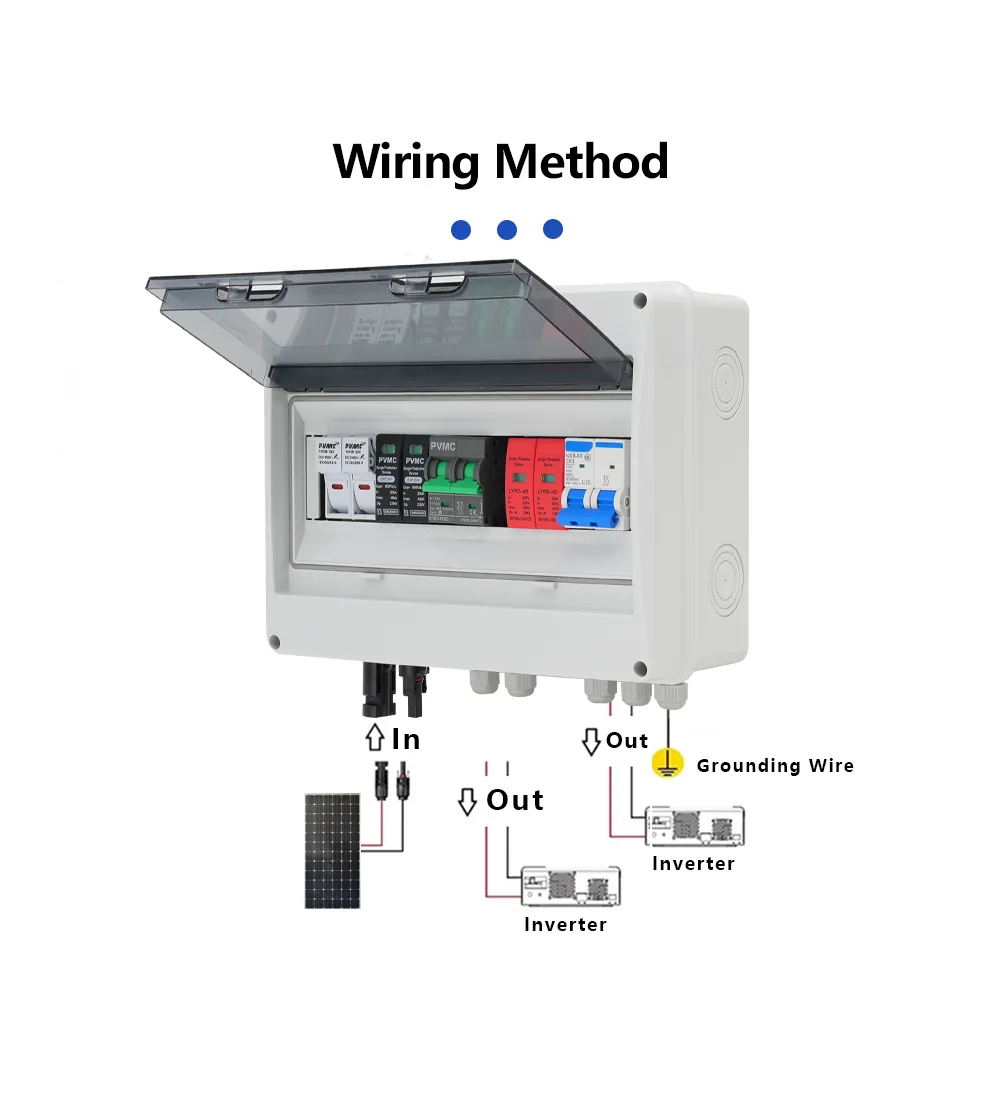

A： Yes, it is designed to combine one DC string (from PV panels) and one AC output (from inverter to grid) in one enclosure, with separate surge protection and breakers for each circuit.
Q： Is the enclosure suitable for outdoor mounting？
A： Yes, the IP65 rating makes it dust‑tight and protected against water jets, suitable for direct outdoor installation.
Q： Do you offer other configurations (more strings, different voltages)？
A： Yes, we can customize the DC/AC configuration to meet your project requirements. Please contact us for details.
Q： What is the advantage of using a combined DC+AC combiner box？
A： It simplifies installation, reduces the number of separate enclosures, and centralizes both DC and AC protection, making maintenance easier and saving space.
Get a Quote Today
Looking for an integrated DC+AC solar combiner box？ Contact us now for detailed specifications and a custom quote.
